Cleaning the LED Head

Clean the LED head if vertical white lines appear, images are faded, or the periphery of letters are smudged in the printouts.

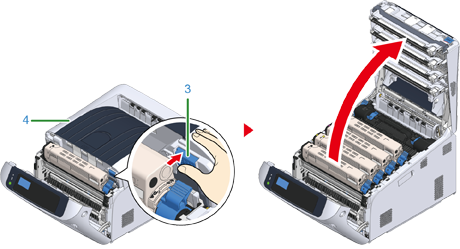

  1. Hold the handle (A) to open the scanner unit.

  1. Insert your finger into the recess (B) on the right side of the machine and pull the front cover open lever (1) to open the front cover (2) forward.

  1. Press the button (C) and open the Output Tray (3).

  1. Wipe the four lenses of the LED heads with a soft tissue paper lightly.

  1. Close the Output Tray by pushing the both sides of the Output Tray firmly.

  1. Close the front cover.

  1. Hold the handle (A) to close the scanner unit.
