Replacing the Toner Cartridge - For C (cyan), M (magenta), Y (yellow) Toner Cartridge

  1. Prepare new toner cartridges.
  2. Hold the handle (A) to open the scanner unit

  1. Insert your finger into the recess (B) on the right side of the machine and pull the front cover open lever (1) to open the front cover (2) forward.

  1. Press the button (C) and open the Output Tray (3).

  1. Identify an empty toner cartridge by its label color.
  2. Turn the blue lever (4) of the toner cartridge toward you until its top align on the  mark.

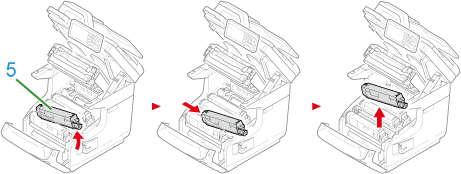

  1. Lift the toner cartridge (5) from right side, and remove it from the machine.

  1. Unpack a new toner cartridge.

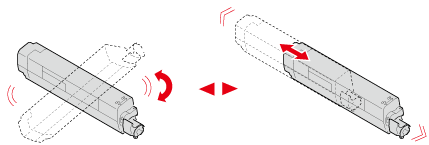

  1. Shake the cartridge several times vertically and horizontally.

  1. Remove the tape (6) from the toner cartridge.

  1. Insert a new toner cartridge (5) by aligning its left side indentation (7) with the protrusion (8) on the image drum so the toner cartridge and image drum color labels align. Then insert the right side gently into place.

  1. Turn the blue lever (4) of the toner cartridge backward until its top align on the  mark while pressing the toner cartridge.

  1. Wipe the lens of the LED head with a soft tissue paper lightly.

  1. Close the Output Tray (3) by pushing the both sides of the Output Tray (3) firmly

  1. Close the front cover (2).

  1. Hold the handle (A) to close the scanner unit.

  1. Please recycle toner cartridges.
