Replacing the Fuser Unit

When the "Fuser Unit Near Life" message appears on the display screen, prepare a replacement fuser unit. You can keep printing approximately 2,500 pages until the next message appears.

When the "Change Fuser Unit" message appears, replace the fuser unit.

The life expectancy of the fuser unit is up to 100,000 pages for A4 simplex printing.

You can change the setting for displaying the "Fuser Unit Near Life" message. Set from [Device Setting] > [Admin Setup] > [User Install] > [Fuser Near Life Timing]. Available values are from 500 to 5,000 (in 500 increments).

1. Prepare a new fuser unit.

2. Hold the handle (A) to open the scanner unit.

3. Insert your finger into the recess (B) on the right side of the machine and pull the front cover open lever (1) to open the front cover (2) forward.

4. Press the button (C) and open the Output Tray (3).

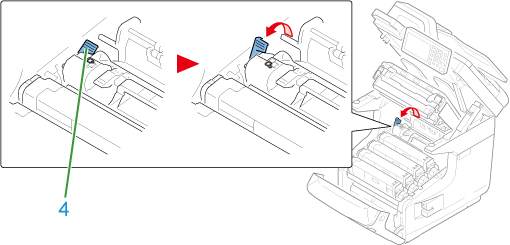

5. Pull forward the left locking lever (4) of the fuser unit to unlock.

6. Hold the fuser unit handle (5) and lift the fuser unit out of the machine.

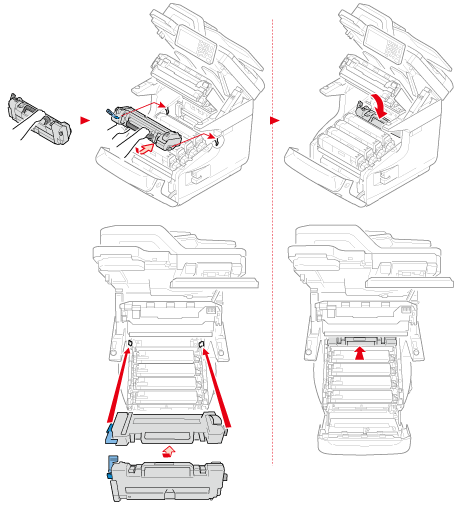

7. Hold the handle and place the new fuser unit into the machine.

8. Push back the left locking lever (4) of the fuser unit to lock.

9. Close the Output Tray (3) by pushing the both sides of the Output Tray firmly.

10. Close the front cover (2).

Note: The front cover cannot be closed if the output tray is not closed securely.

11. Hold the handle (A) to close the scanner unit.

12. Please recycle fuser unit.

If you must dispose of a fuser unit, put it in a plastic bag or similar container and dispose of it in accordance with your municipality's ordinances or guidelines.
