Replacing the Feed Roller (MP Tray)

  1. Prepare the paper feed rollers for the MP tray.

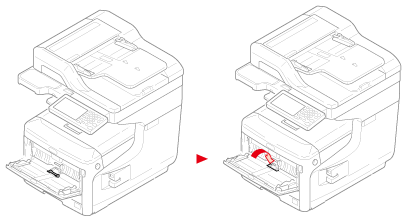

  2. Open the MP tray (1) forward by inserting your fingers into the front recesses


.

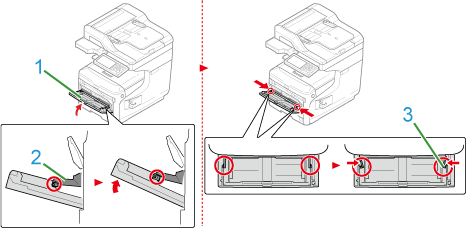

  1. Slightly lifting the MP tray (1), press the right arm (2) inward, then unlock the tab (3).


  1. In the same manner, slightly lifting the MP tray, press the left arm inward, then unlock the tab.
  2. Open the paper set cover until it touches to the machine body.

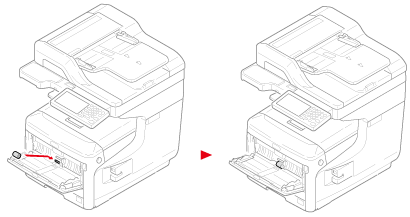

  1. Open the tabs on the upper paper feed roller outward and slide the paper feed roller to the left to remove.

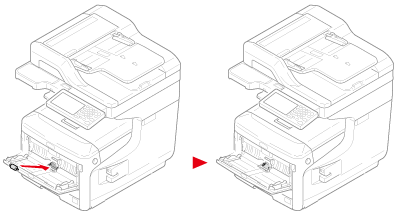

  1. Keep pressing the separating roller cover, open the tabs on the lower paper feed roller outward and slide the paper feed roller to the left to remove.


  1. Keep pressing the center of the MP tray and open the separating roller cover forward.

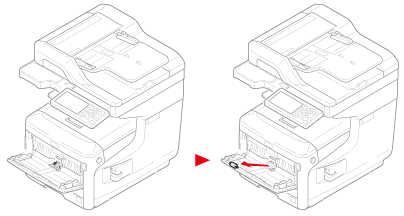

  1. Remove the separating roller.


  1. Keep pressing the center of the MP tray and set a new separating roller.

Do not touch the rubber part of the roller.

  1. Close the separating roller cover.

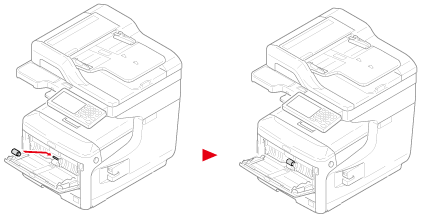

  1. Set the paper feed roller (without gear) to the lower axis.


  1. Set the paper feed roller (with gear) to the upper axis.


  1. Lower the paper set cover.

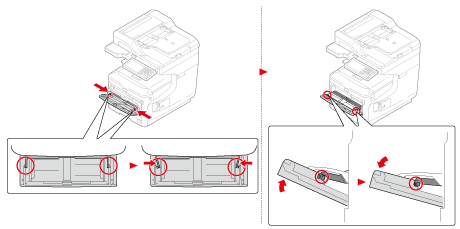

  1. While pressing the right arm on the MP tray, slightly lift the MP tray and hook the tab.

Closing the MP tray without putting the tab back in place may crack the paper set cover. Be sure to put it back in place.

  1. In the same manner, while pressing the left arm on the MP tray, slightly lift the MP tray and hook the tab.


  2. Close the MP tray.

    If the MP tray cannot be closed, press the paper setting part of the MP tray downward to put the paper set cover back in place.
